Force Reconstruction (Wrench Estimator)

The Wrench Estimator reconstructs the external wrench (force + torque) applied at each foot from the measured actuator forces alone — no foot force/torque sensor required. It is provided by the kangaroo_constrained_dynamics_ros package, built on top of the Kangaroo Full Model: the same constrained-dynamics formulation that “opens” every closed linkage and re-imposes it as a mechanical constraint is used here to reconstruct the full 76-DOF leg configuration from the 6 actuated joints, and then to run inverse and forward dynamics on it.

It is mainly used to visualize and validate the estimated foot wrench against a real FT sensor (RViz overlay) and, from that comparison, to calibrate the actuators’ internal force sensors.

Overview

Parameter	Value
Package	kangaroo_constrained_dynamics_ros
Core library	kangaroo_constrained_dynamics (constrained forward/inverse dynamics on the full model)
Executable / node	wrench_estimator
Model used	Kangaroo Full Model (per leg, fixed base)
Input	Actuated-joint positions and forces, from pal_statistics
Output	Estimated external wrench at each foot

How the Estimate is Computed

For each enabled leg, on every /actuators_statistics/values message the node:

1. reads the 6 actuated-joint positions and forces by key and maps them into the model’s convention;

2. reconstructs the full leg configuration q (all 76 DOFs) from the 6 actuated joints, by solving the closed-loop constraints of the full model;

3. runs the constrained forward dynamics, f_ext = forward(q, expand_tau(tau_act)), to recover the external wrench consistent with the measured actuator forces;

4. rotates the result into the leg’s output frame and publishes it.

Failure policy

On missing/non-finite statistics, statistics names not yet received, a non-converged kinematics solve, or any NaN/Inf in the result, the node logs a throttled warning and skips that leg’s cycle (nothing is published for it that cycle).

Topics

Topic	Type	Description
/actuators_statistics/names	pal_statistics_msgs/StatisticsNames	Subscribed. Actuator statistics key names.
/actuators_statistics/values	pal_statistics_msgs/StatisticsValues	Subscribed. Actuator statistics values (positions, forces).
/wrench_estimator/left/wrench	geometry_msgs/WrenchStamped	Published. Estimated external wrench at the left foot.
/wrench_estimator/right/wrench	geometry_msgs/WrenchStamped	Published. Estimated external wrench at the right foot.

Frames

The wrench is first computed in a world-aligned frame (ee_reference_frame: LOCAL_WORLD_ALIGNED) — i.e. in the model’s world axes, which for the fixed-base leg model coincide with base_link (reference_frame) — and then rotated via tf2 into each leg’s output_frame (default ankle_<leg>_ft_sensor_link). Since the FT frame is co-located with the foot, this projection is a plain rotation, so the estimate lands in the same frame the real FT sensor uses and overlays directly on it. Set left_output_frame / right_output_frame to "" to instead publish the world-aligned wrench in reference_frame.

Launching

ros2 launch kangaroo_constrained_dynamics_ros wrench_estimator.launch.py

Both legs run from one shared model by default. Estimates start flowing as soon as /actuators_statistics/* is available.

Configuration

Parameter	Default	Meaning
legs	["left", "right"]	Which legs to estimate; e.g. ["left"] for one.
gravity	true	Include gravity in the dynamics.
left_output_frame / right_output_frame	ankle_<side>_ft_sensor_link	TF frame the wrench is published in ("" keeps it world-aligned in base_link).
stats_names_topic / stats_values_topic	/actuators_statistics/{names,values}	PAL statistics topic pair.
left_model_config / right_model_config	""	Core leg-config path; empty uses the package default.
reference_frame	base_link	TF frame whose axes the world-aligned wrench corresponds to.
ee_reference_frame	LOCAL_WORLD_ALIGNED	Pinocchio reference frame the wrench is computed in.

Defaults live in config/wrench_nodes.yaml. Point the launch at a different file with config:=/path/to/params.yaml.

Visualizing in RViz

ros2 launch kangaroo_constrained_dynamics_ros wrench_estimator.launch.py rviz:=true

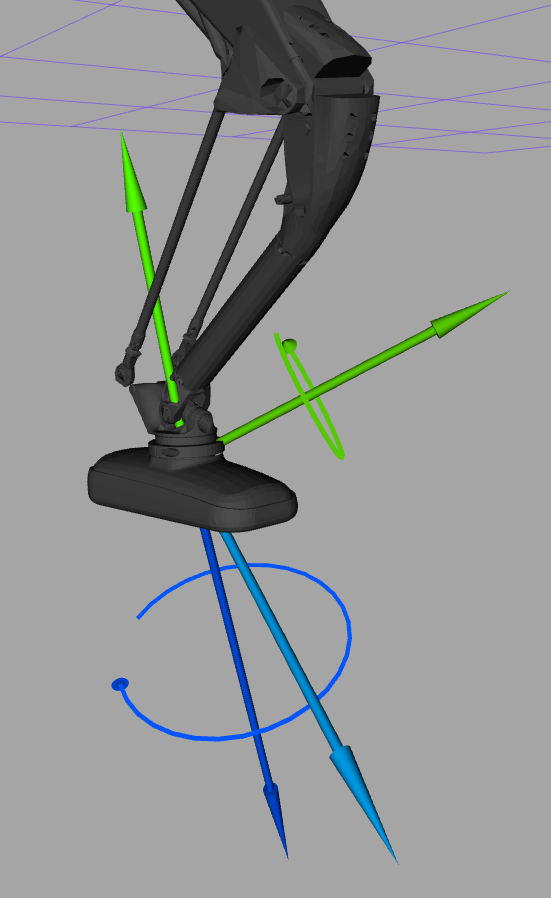

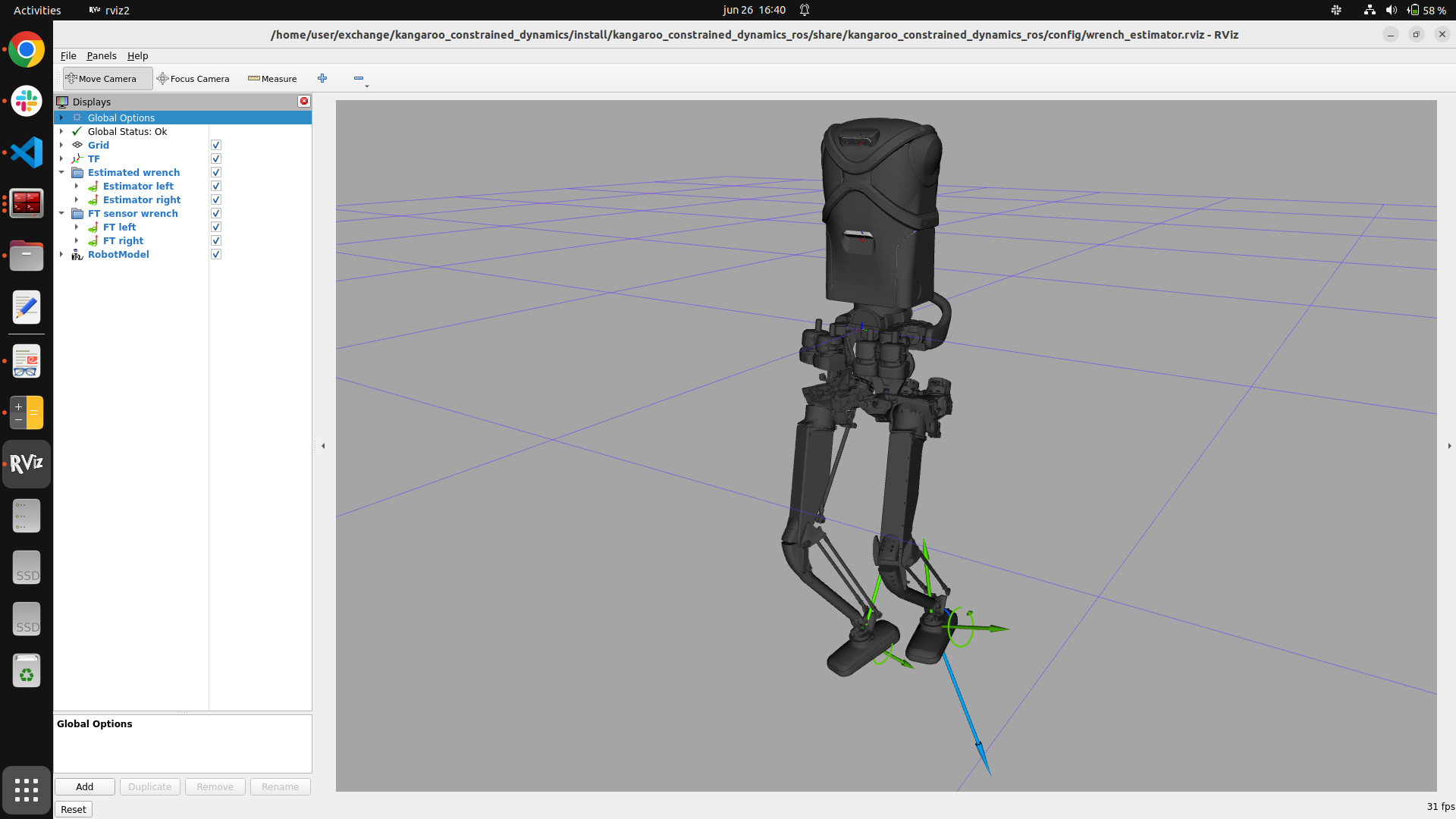

This opens RViz preloaded with four WrenchStamped displays on a base_link fixed frame — the estimated wrench per leg (green) and the real FT-sensor wrench per leg (blue, from /ankle_ft_{left,right}_controller/wrench, shown only when published) — so the estimate and the ground-truth measurement overlay for direct comparison:

Standalone, against an already-running estimator:

rviz2 -d $(ros2 pkg prefix kangaroo_constrained_dynamics_ros)/share/kangaroo_constrained_dynamics_ros/config/wrench_estimator.rviz

FT sensor as ground truth

The FT-sensor wrench is only a meaningful comparison once the FT sensor itself has a trustworthy zero (warmed up, calibrated unloaded) — see FT Sensor Calibration.
